The Complete Guide to Bucket Shims | Reduce Bucket Wear & Chatter
Understanding Side Play, Bucket Chatter, and How Bucket Shims Protect Your Excavator
Every excavator owner expects normal wear. Bucket pins, bushings, cutting edges, and teeth are all designed to withstand thousands of hours of digging before eventually requiring replacement. What many operators don't realize, however, is that some of the most expensive attachment repairs begin with something much smaller—a few millimeters of unwanted side clearance between the bucket and the machine.
That extra movement often goes unnoticed at first. The bucket may produce a slight clunk when changing direction, feel less precise during finish grading, or develop a subtle side-to-side movement that wasn't there when the machine was new. Because the excavator continues to perform its normal work, these early symptoms are easy to dismiss as ordinary wear. Unfortunately, they're often the first indication that the attachment system is no longer operating as it was designed.
In many cases, operators immediately assume worn bucket pins or bushings are responsible for the looseness. While those components certainly wear over time, they are not always the source of the problem. Excessive side play is frequently caused by worn, damaged, or missing bucket shims that no longer maintain the proper clearance between the attachment and the machine. Left uncorrected, that movement allows the bucket to repeatedly shift during operation, accelerating wear throughout the entire attachment system.
Understanding how bucket shims work—and why they matter—is one of the simplest ways to reduce unnecessary wear, improve machine control, and extend the service life of expensive excavator components.
What Are Bucket Shims?

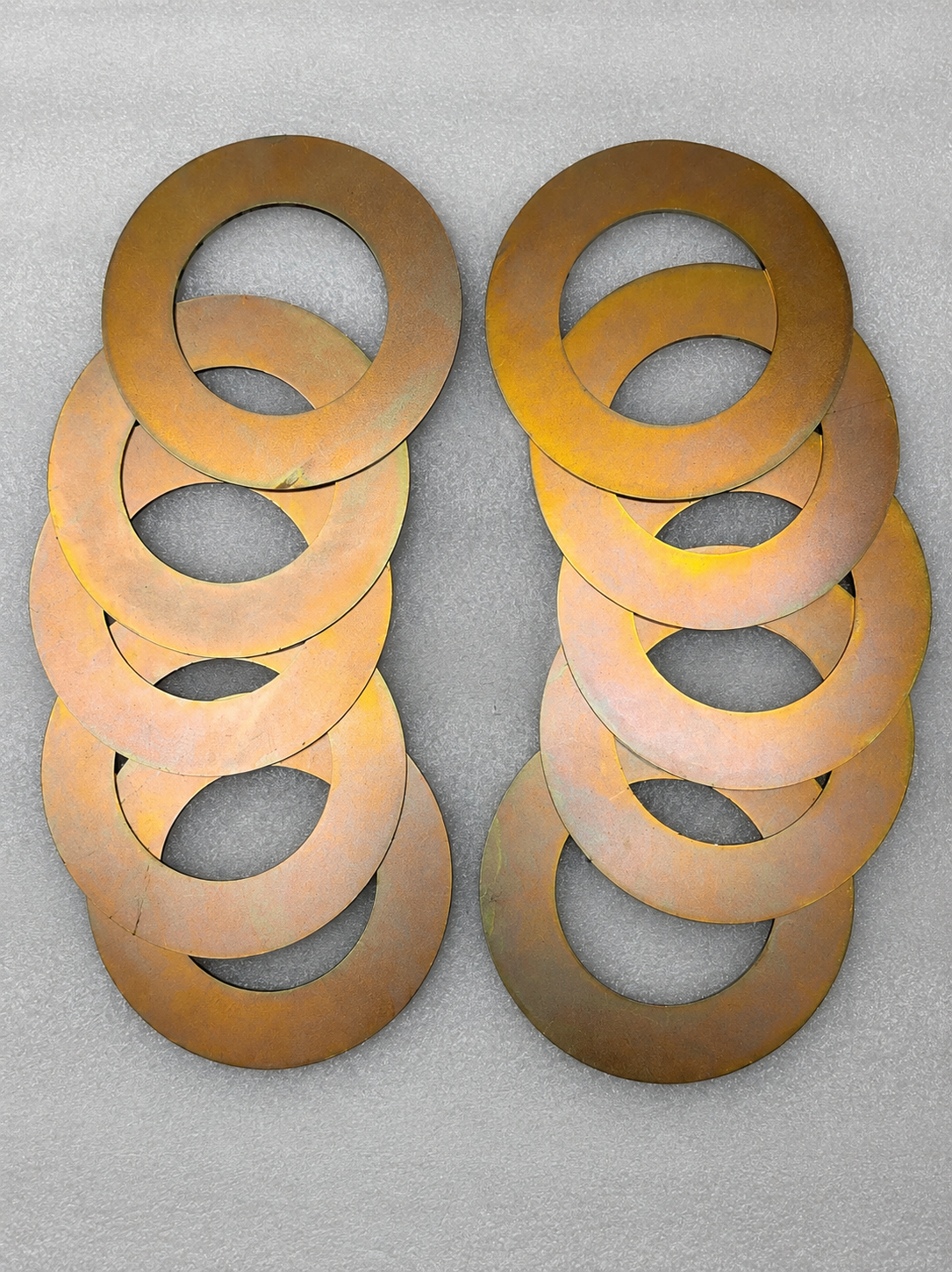

Bucket shims are precision steel spacers installed between an excavator attachment and the machine's mounting ears or quick coupler. Their purpose is straightforward: they remove unnecessary side clearance while allowing the bucket to rotate freely on the bucket pins.
Although they are among the least expensive components in the attachment system, bucket shims perform an important job every time the machine operates. They help keep the bucket properly centered between the mounting ears so that digging forces are transferred through the pins and bushings as intended. Without the correct shim thickness, the attachment gains room to move from side to side every time the operator digs, lifts, swings, or changes direction. On some attachment designs, properly fitted shims may also help reduce the amount of open space where grease can escape and dirt or debris can enter, although controlling side clearance remains their primary purpose.
Many people think of bucket shims as nothing more than thin washers used to fill empty space. In reality, they are wear components designed to maintain proper alignment throughout the attachment system. Their job is not to increase lifting capacity or compensate for severely worn pins and bushings. Instead, they control side clearance before excessive movement begins creating unnecessary wear.
Understanding How an Excavator Attachment Works
To understand why bucket shims are so important, it helps to understand how the attachment system is designed to function.
Every excavator bucket is connected to the machine using hardened steel pins that pass through the bucket ears, bushings, linkage, and either the stick or quick coupler. These pins create pivot points that allow the bucket to curl and rotate while remaining securely attached to the machine.
Although the bucket is designed to rotate around these pins, it is not designed to slide sideways across them. The attachment should remain centered between the mounting ears with only enough clearance to allow smooth movement without binding. This is exactly where bucket shims perform their job.
By occupying the small amount of space between the attachment and the machine, bucket shims help maintain the original alignment engineered into the attachment. When everything fits correctly, digging forces travel smoothly through the pins and bushings, distributing loads evenly throughout the system. The attachment operates quietly, feels solid to the operator, and experiences normal wear over time.
As components wear, however, those carefully controlled clearances begin to change.
Why Buckets Develop Side Play
Every hour an excavator spends working places tremendous stress on its attachment system. Whether the machine is trenching, loading rock, clearing trees, breaking frost, or performing finish grading, thousands of pounds of force are repeatedly transferred through the bucket pins and surrounding components.
Even under ideal operating conditions, steel wears. The contact surfaces between pins, bushings, bucket ears, and mounting components slowly lose material through normal use. This process is gradual enough that operators rarely notice it from one day to the next, but over hundreds or thousands of operating hours those small changes begin adding up.
As wear develops, additional clearance begins forming between the bucket and the machine. At first the movement is almost impossible to detect. The attachment still feels reasonably tight, and the machine continues performing normally. Eventually, however, enough clearance develops that the bucket begins shifting slightly from side to side during operation.
That seemingly minor movement changes how forces travel through the attachment. Instead of remaining centered during every digging cycle, the bucket now has room to move before the load is fully transferred. What started as a few millimeters of clearance begins creating repeated impacts between components that were never intended to strike one another.
Why Bucket Chatter Happens
One of the first symptoms operators notice is bucket chatter. Depending on the machine and the amount of wear present, it may sound like a dull clunk, a metallic knock, or a noticeable rattle whenever the bucket changes direction.
The sound itself isn't the problem. It's simply evidence that the attachment is moving farther than it should.
Imagine placing a heavy toolbox in the bed of a pickup truck. If the toolbox fits tightly between the wheel wells, it remains relatively stationary while driving. Leave several inches of empty space around it, however, and every turn, stop, or acceleration sends the toolbox sliding into the side of the truck bed. The heavier the toolbox and the harder you drive, the greater the impact becomes.
An excavator bucket behaves much the same way.
Every time the operator stops swinging the boom, curls the bucket, or changes digging direction, the weight of the attachment wants to continue moving because of inertia. If enough side clearance exists, the bucket shifts laterally until it contacts the opposite mounting surface. That repeated impact produces the chatter operators hear from the cab and gradually wears away the components responsible for keeping the attachment properly aligned.
The important thing to remember is that chatter is almost always a symptom rather than the root cause. The real issue is the unwanted movement that allows those impacts to occur in the first place.
Why a Small Amount of Movement Creates Big Problems
One of the most common misconceptions about bucket wear is that a few millimeters of side play aren't worth worrying about. After all, the machine still works, the bucket still digs, and the movement doesn't seem significant.
The reality is quite different.
A small amount of side clearance doesn't simply allow the bucket to move—it allows the bucket to build momentum before contacting the surrounding steel. Every time the attachment shifts, energy that should have been transferred smoothly through the pins and bushings is instead converted into impact loading.
Unlike steady loads, impact loads place much greater stress on the surrounding components. Bucket ears, bosses, quick couplers, linkage assemblies, thumbs, and stick ends all experience repeated shock loading that gradually removes material from their contact surfaces. As more material wears away, even greater clearance develops, allowing the bucket to move farther before impact.
This is why attachment wear rarely progresses at a constant rate.
The more clearance that develops, the greater the impacts become. The greater the impacts become, the faster surrounding components wear. What begins as barely noticeable movement eventually accelerates into excessive looseness that affects machine performance and significantly increases repair costs.
Fortunately, this cycle can often be interrupted before major damage occurs.
Inspecting Your Bucket for Side Play
One of the biggest mistakes equipment owners make is waiting until an attachment becomes obviously loose before inspecting it. By the time excessive movement can be seen from several feet away, the attachment has often been operating with unnecessary side clearance for hundreds of hours. Regular inspection allows small issues to be identified before they develop into expensive repairs.
The easiest time to inspect a bucket is during routine maintenance or while greasing the attachment. With the machine safely parked on level ground and the bucket resting securely, visually inspect both sides of the attachment where it fits between the stick or quick coupler. The bucket should appear centered with minimal visible clearance on either side. If one side has a noticeably larger gap than the other or the bucket can be shifted sideways by hand, additional inspection is warranted.
Next, slowly move the bucket side to side while observing the attachment. The goal isn't to check the normal rotational movement around the bucket pins, but rather to identify any lateral movement between the attachment and the machine. Excessive side play often becomes easier to feel than it is to see. Even a small amount of movement can indicate that the original factory clearances have changed enough to justify measuring the attachment more closely.
It's equally important to inspect the surrounding components while checking for side play. Look for polished areas where steel has been repeatedly contacting steel, uneven wear marks on the bucket ears, damaged shims, or evidence that the attachment has been striking the quick coupler or mounting ears during operation. These visual clues often provide valuable insight into how long the problem has been developing.
Measuring Side Clearance
Once side play has been identified, the next step is determining how much clearance actually exists. Guessing at shim thickness often leads to either excessive movement or an attachment that fits too tightly, so taking a few minutes to measure the gap properly is well worth the effort.
Most technicians measure the remaining clearance after the bucket has been installed and the pins are fully seated with a caliper or feeler gauges. Feeler gauges work well because they allow the gap to be measured without disassembling the attachment. By inserting progressively thicker feeler gauges between the attachment and the mounting ear, the remaining clearance can be measured with surprising accuracy.
It's important to measure both sides independently. Attachments rarely wear perfectly evenly, and assuming both sides require identical shim thicknesses can result in a bucket that is no longer centered. Although distributing shims equally is generally preferred whenever possible, the correct combination ultimately depends on the wear pattern of the individual machine.
When measuring, remember that the objective isn't to eliminate every thousandth of clearance. The bucket must still rotate freely around the pins without binding. The correct shim thickness removes unnecessary side movement while allowing the attachment to pivot smoothly throughout its full range of motion.
Choosing the Correct Bucket Shim
Selecting the proper bucket shim is less about finding one exact thickness and more about restoring the attachment to its intended operating clearance.
Bucket shims are manufactured in multiple thicknesses specifically because every machine wears differently. A newer excavator may require only a thin shim to restore proper fitment, while an older machine that has accumulated thousands of operating hours may require multiple shims or thicker combinations to remove excessive side clearance.
Many technicians begin with thinner shims and gradually increase thickness until the attachment fits snugly without creating excessive friction. This trial-fit approach allows the bucket to remain properly centered while ensuring the pins can still rotate freely. If the attachment becomes difficult to move after installing shims, the fit is likely too tight and should be adjusted before returning the machine to service.
One common misconception is that tighter is always better. In reality, eliminating all clearance can create its own problems by preventing the attachment from moving freely as the machine flexes under load. Proper shimming is about achieving the correct balance between stability and free movement, not creating an interference fit.
Can Bucket Shims Fix Every Loose Bucket?
This is one of the most common questions equipment owners ask, and the answer depends entirely on where the movement is occurring.
Bucket shims are designed to eliminate side-to-side movement between the attachment and the mounting ears. They do not repair rotational wear between the bucket pins and bushings. If the pins can rotate excessively within worn bushings, adding thicker shims will not solve the problem because the looseness exists in an entirely different location.
For that reason, diagnosing the source of the movement is essential before ordering replacement parts. A bucket that rocks side to side but remains tight around the pins will often benefit from new shims. Conversely, a bucket that rotates excessively around the pins while remaining centered between the mounting ears likely requires new pins, bushings, or both.
Many older excavators eventually require attention to both areas. As attachments accumulate thousands of hours, side clearance and rotational wear frequently develop together. Replacing only one component while ignoring the other often leaves operators disappointed because the attachment still doesn't perform the way they expected.
Common Bucket Shim Mistakes
Although bucket shims are simple components, improper installation or maintenance can significantly reduce their effectiveness. One of the most common mistakes is assuming that any piece of steel can be used as a substitute. Standard hardware washers are sometimes installed to remove side play, but they are not designed for this application. Their dimensions, hardness, and thickness are rarely consistent enough to maintain proper alignment under heavy loading.
Another common mistake is ignoring bucket chatter because the machine continues operating normally. Chatter is more than just an annoying sound; it's evidence that impact loading is occurring somewhere within the attachment system. Continuing to operate the machine without correcting excessive side clearance allows wear to accelerate and often increases the cost of future repairs.
Improper shim placement is another issue occasionally encountered during repairs. While every machine wears differently, shims should generally be distributed in a manner that keeps the attachment centered whenever practical. Placing all of the shims on one side without considering alignment can create uneven loading and unnecessary wear. The exact shim arrangement should always be based on measured clearances rather than assumptions.
Finally, many operators wait until the bucket becomes visibly loose before performing any inspection. By that point, the shims may no longer be the only worn components. Regular inspection during routine maintenance is far less expensive than rebuilding a severely worn attachment.
Bucket Shims as Preventive Maintenance
One of the easiest ways to think about bucket shims is to compare them to other wear components found on heavy equipment. Cutting edges, bucket teeth, wear pads, and stabilizer pads are all designed to protect more expensive structural components by wearing first. Bucket shims serve much the same purpose.
By maintaining proper side clearance, they reduce unnecessary movement before repeated impacts can damage pins, bushings, bucket ears, and quick couplers. Replacing a worn shim is relatively inexpensive compared to line boring a bucket, welding new bosses, or rebuilding a worn quick coupler.
Like every other wear component, bucket shims should be viewed as part of a preventive maintenance program rather than a repair after something fails. Inspecting them periodically, replacing them when necessary, and correcting side clearance before excessive wear develops helps extend the life of the entire attachment system while reducing downtime and repair costs.
Final Thoughts
Bucket shims may not receive the same attention as pins, bushings, or cutting edges, but their importance shouldn't be underestimated. By controlling side clearance, they help maintain proper attachment alignment, reduce bucket chatter, improve operator control, and minimize unnecessary impact loading throughout the excavator's attachment system.
Understanding the difference between side play and rotational wear is equally important. While bucket shims cannot repair worn pins or bushings, they play a critical role in preventing excessive side movement that accelerates wear on many of the attachment's most expensive components. Routine inspection, proper measurement, and selecting the correct shim thickness are all relatively simple maintenance tasks that can significantly extend the service life of your equipment.
At Northwest Iowa Parts, we believe understanding why components wear is just as important as replacing them. Our goal is to provide not only quality replacement parts, but also the technical information equipment owners need to diagnose problems accurately, perform repairs with confidence, and keep their machines working reliably for years to come.
If you're looking for replacement bucket shims, bucket pins, bushings, or other heavy equipment wear parts, explore our growing selection of products and technical resources. Whether you're maintaining a single compact excavator or managing an entire fleet, investing a little time in understanding your attachment system today can help prevent much larger repair bills tomorrow.
