Why Timpte Hopper Doors Get Hard to Open — And How Replacing the Gear Rack Fixes It
If you own an older Timpte grain trailer, chances are you’ve fought with hopper doors that keep getting harder and harder to crank open over time. Many owners first assume the gearbox is failing, but in many cases the real issue is the trap door gear rack underneath the door itself.
At Northwest Iowa Parts, we manufacture replacement aftermarket Timpte low torque hopper door gear racks for several Timpte low torque hopper door systems, including 035-24983-00695 and 365-37460. These racks are designed to restore smooth hopper door operation when the original rack becomes worn, rusted, or warped.
The Real Problem Behind Stiff Timpte Hopper Doors
One trailer owner rebuilding a 1992 Timpte Super Hopper described doors that became so stiff they “sometimes don't really want to crank at all.”
After rebuilding the front hopper door, he explained it could suddenly be opened “with one finger.”
That is a common symptom of warped or rust-jacked gear racks.
Many owners replace bearings, grease tracks, or inspect gearboxes first, but the rack itself is often where the real problem starts.
What Causes Timpte Hopper Door Racks to Fail?
The factory rack assembly lives underneath the hopper door where it is constantly exposed to:
- Road salt
- Fertilizer dust
- Moisture
- Grain debris
- Freeze/thaw cycles

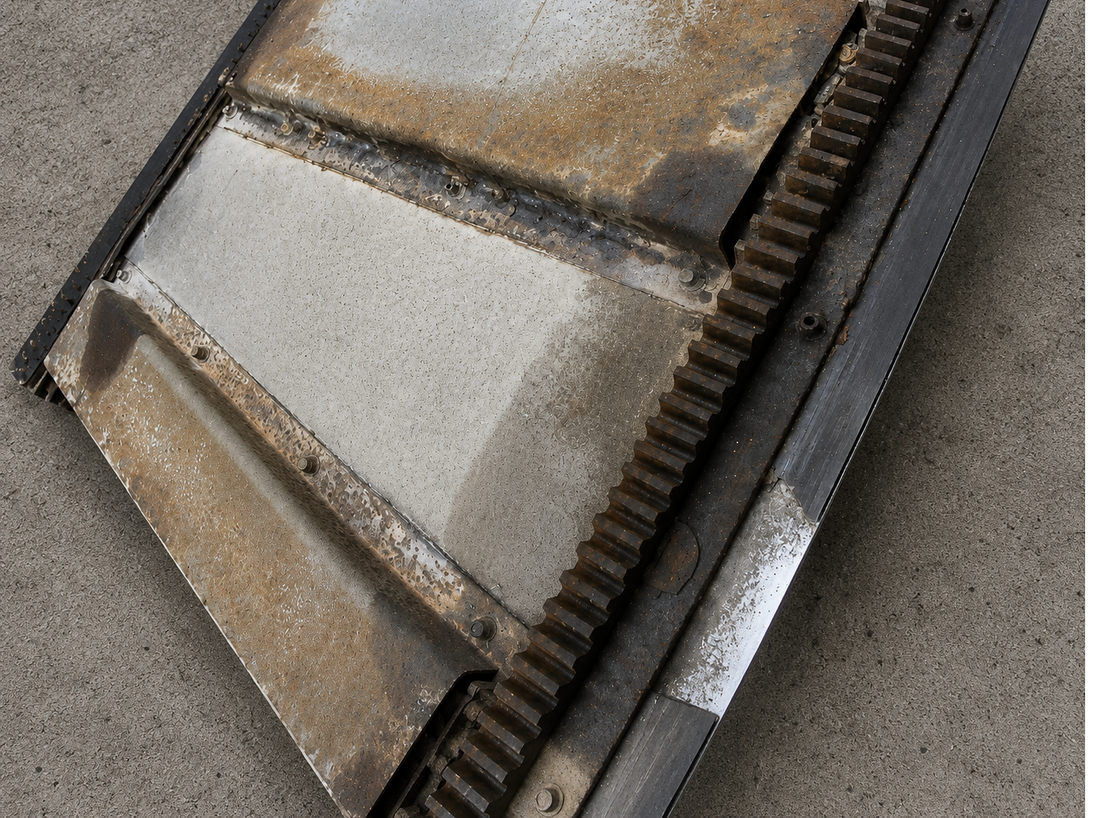

Below is a photo showing the effects of rust on the hopper door:
Over time, corrosion builds between the steel rack and mounting surface. This corrosion expansion can physically distort the rack assembly and reduce the clearance between the rack and pinion gear.
Several Timpte owners describe this exact “rust jacking” problem during trap door rebuilds.
One of our customers explained it perfectly:
“The rust gets in between here and here and what it actually does is it bows these gear strips up and then they're warped.” See the photo below to what he is describing and where this rust can form:
Once the rack distorts:
- The pinion gear develops tight and loose spots
- The doors become extremely hard to crank
- Gear mesh becomes inconsistent
- The rack may no longer sit flat against the door
These conditions ultimately lead to what causes your stiff trailer doors.
Common Signs Your Timpte Gear Rack May Need Replaced
A failing or rusted hopper door rack can cause:
- Hopper doors becoming difficult to crank
- Binding while opening or closing
- Uneven gear mesh
- Tight spots and loose spots while turning
- Doors that drag badly in the tracks
- Visible warping or swelling beneath the rack
- Excessive resistance even after greasing bearings
In many cases, owners report the door becomes so difficult to move it must be pulled out using a come-along during teardown.
Why Rust Gets So Aggressive Under Hopper Doors
One rebuild explanation points directly at winter road conditions:
“There’s a constant mist of salt underneath these trailers and it just eats them alive.”
That constant exposure to salt spray and moisture accelerates corrosion between the steel rack and aluminum hopper door.
Over time:
- The steel expands from corrosion
- The rack lifts upward
- Gear clearance changes
- The door becomes progressively harder to operate
Replacing the Rack During a Trap Door Rebuild
Timpte’s rebuild procedure involves:
- Removing the hopper door
- Removing the old rack assembly
- Cleaning corrosion from the door
- Installing a replacement rack
- Reassembling and adjusting the gear mesh
According to the rebuild instructions:
- The old gear rack and spacers are removed from the door
- Corrosion should be cleaned off before reassembly
- Paint and Mylar tape should be applied before installation to help reduce future corrosion
- The rack is fastened back onto the door using countersunk hardware
The rebuild instructions also specify maintaining proper gear clearance:
“Make sure there’s a 1/8-inch gap between the gears on the shaft and the teeth on the door.”
This is an after photo of a new gear rack installed on a hopper door:
Preventing Future Corrosion
During one rebuild, the door was thoroughly cleaned and coated with industrial primer before the new rack was installed.
Additional preventative steps often include:
- Priming bare aluminum surfaces
- Painting the rack before installation
- Using Mylar tape between surfaces
- Periodically spraying penetrating oil on moving components
- Keeping debris cleaned from tracks
These extra steps can help slow future corrosion and extend hopper door life.
Below is a photo showing the gear rack painted black for protection:
Our Aftermarket Timpte Hopper Door Gear Rack
Our replacement rack is designed to replace Timpte part number 035-24983-00695 on 1994 & newer Timpte trailers.
Features
- Fits Timpte low torque hopper door systems
- Replaces OEM part number 035-24983-00695
- Measures approximately 43-1/2" long
- Precision laser cut
- Built from structural steel
- Proudly made in the USA
- Designed for welding installation
This is an aftermarket replacement part built for customers rebuilding worn or damaged Timpte hopper door assemblies.
Final Thoughts
If your Timpte hopper doors are getting progressively harder to crank, the gear rack underneath the door may be the real source of the problem — especially if corrosion has started lifting or warping the rack assembly.
Replacing the rack during a trap door rebuild can dramatically improve door operation and help restore smoother, more consistent gear engagement.
If you find yourself looking at your trailer and suspecting the hopper door, check out what we have to offer at Northwest Iowa Parts to help solve those problems and get you back on the road.
