Why Bolt Grade Matters on Manure Spreader Hammers & Paddles
Choosing the Right Hardware for Long-Term Reliability
Excerpt
The manure spreader paddle or hammer often gets the attention during repairs, but the mounting hardware is just as important. Learn why bolt grade, clamping force, lock nuts, and proper hardware selection all play a role in keeping manure spreader hammers and paddles securely mounted and working reliably.
The Most Overlooked Part of a Manure Spreader Repair
When a manure spreader paddle or hammer becomes worn, most operators focus on replacing the wear part itself.
That's understandable. After all, the paddle is the component that actually contacts and spreads the material.
But there's another component that experiences the same demanding conditions every time the beaters rotate:
The mounting hardware.
Every revolution subjects the bolts and lock nuts to vibration, repeated impact loads, and constantly changing forces. Even though they don't contact the manure directly, they are responsible for keeping the paddle securely clamped to the beater assembly.
A worn paddle can reduce spreading performance.
A failed bolt or nut can allow the entire paddle to loosen, shift, or worse, detach from the machine.
For that reason, replacing worn hardware deserves just as much consideration as replacing the paddle itself.
Why Manure Spreader Hardware Lives a Tough Life
Unlike many agricultural fasteners that simply hold stationary components together, manure spreader paddle bolts are exposed to constantly changing loads.
During normal operation, every paddle repeatedly enters and exits the material being spread. Depending on the material being handled, each rotation may involve:
- Wet manure
- Frozen manure
- Packed bedding
- Straw
- Sand
- Foreign objects hidden within the load
Each impact attempts to move the paddle.
The bolts resist that movement by maintaining clamping force between the paddle and the beater support.
This cycle repeats thousands of times during a single day of spreading.
Over months and years, those repeated loading cycles can gradually fatigue both the hardware and the surrounding components.
What Does Bolt Grade Actually Mean?
One of the most common questions operators ask is:
"Do I really need hardened bolts?"
The short answer is:
Yes—provided they match the equipment's original specifications.
A bolt's grade identifies its mechanical properties, including its strength and the loads it is designed to withstand.
Higher-strength fasteners are engineered to maintain clamping force under demanding applications where lower-strength hardware may stretch or loosen over time.
Many manure spreader manufacturers use hardened fasteners because the beater assembly experiences significant vibration and repeated impact loading during normal operation.
Replacing those fasteners with hardware that does not meet the original specifications may reduce the reliability of the joint.
Strength Isn't the Only Thing That Matters
It's easy to assume that using the strongest bolt available is always the best solution.
In reality, bolt performance depends on far more than ultimate strength.
Proper hardware selection considers several factors, including:
- Tensile strength
- Yield strength
- Toughness
- Fatigue resistance
- Proper thread engagement
- Correct clamping force
The goal isn't simply to install the hardest bolt available.
The goal is to install hardware that performs as the equipment was engineered to perform.
For most repairs, matching the manufacturer's original hardware specifications is the safest approach.
Why Clamping Force Is More Important Than Shear Strength
Many people assume the bolt itself carries the load.
In properly assembled equipment, that's usually not the case.
When tightened correctly, the bolt acts like a very strong spring.
As it stretches slightly during tightening, it clamps the paddle tightly against the beater support.
That clamping force allows friction between the mating surfaces to resist movement.
If sufficient clamping force is maintained, the paddle remains securely in place.
If clamping force is lost, the paddle can begin moving slightly with each rotation.
Even very small amounts of movement can eventually enlarge mounting holes, loosen hardware, and increase stresses on the fasteners.
This is one reason why maintaining proper hardware and replacing worn lock nuts can be just as important as replacing the paddle itself.
What Happens When Hardware Begins to Loosen?
A loose paddle rarely fails immediately.
Instead, the problem often develops gradually.
As the hardware loses clamping force, the paddle may begin moving slightly against the beater support.
Over time this movement can lead to:
- Elongated bolt holes
- Worn mounting surfaces
- Increased vibration
- Bolt fatigue
- Broken hardware
- Additional wear on surrounding components
Replacing hardware before excessive movement develops can help prevent more extensive repairs later.
Why Lock Nuts Matter
One of the easiest ways to shorten the life of a manure spreader repair is by reinstalling worn locking hardware.
Many manure spreader manufacturers use prevailing torque lock nuts (commonly referred to as lock nuts or Nylock nuts depending on the design) to help maintain clamping force despite constant vibration.
Unlike a standard nut, a locking nut provides additional resistance to loosening during operation.
Over time, however, the locking feature gradually wears.
Every time the nut is removed and reinstalled, its ability to resist loosening may decrease.
For that reason, replacing the lock nuts whenever the paddles or hammers are replaced is often considered good maintenance practice.
The cost of new hardware is typically very small compared to the labor required to replace a loose or damaged paddle later.
Should You Reuse Old Bolts?
This is another question we hear frequently.
If the hardware is in excellent condition and still meets the manufacturer's specifications, it may appear reusable.
However, before reinstalling any fastener, inspect it carefully for:
- Damaged threads
- Corrosion
- Worn locking nuts
- Bent bolts
- Rounded bolt heads
- Excessive wear where the bolt passes through the paddle
If any of these conditions are present, replacement hardware is usually the better option.
Considering the demanding environment manure spreaders operate in, replacing worn hardware while the machine is already disassembled can help avoid future downtime.
Grade 5, Grade 8, and Class 10.9 — What's the Difference?
Different manure spreader manufacturers use different hardware depending on the machine design.
| Bolt Grade | Common Head Marking | Typical Applications | General Strength* |
|---|---|---|---|
| Grade 5 | 3 radial lines | Light to medium-duty agricultural equipment | Medium |
| Grade 8 | 6 radial lines | Heavy-duty agricultural, construction, and suspension components | High |
| Class 8.8 | 8.8 | Common metric equipment hardware | Medium |
| Class 10.9 | 10.9 | Heavy-duty metric agricultural and construction equipment | High |
| Class 12.9 | 12.9 | Specialized high-strength metric applications | Very High |
*General strength is shown for comparison only. This chart is intended as a quick reference. Always replace hardware with the grade specified by the equipment manufacturer.
In North America, you'll commonly encounter:
- Grade 5
- Grade 8
- Metric Class 8.8
- Metric Class 10.9
- Metric Class 12.9
Each was designed for specific applications.
Rather than selecting hardware solely because it has a higher strength rating, the better approach is to replace the original hardware with fasteners that match the manufacturer's specifications.
Doing so helps maintain the intended clamping characteristics and joint performance designed for the equipment.
Common Hardware Mistakes
Many premature hardware failures are not caused by defective bolts.
Instead, they're often the result of installation practices.
Some of the most common mistakes include:
Mixing Different Hardware Grades
Replacing one bolt with a different grade than the others can create uneven loading across the paddle.
Whenever possible, replace hardware as a matched set.
Reusing Worn Lock Nuts
A lock nut that no longer provides adequate locking force can gradually loosen during operation.
Replacing lock nuts whenever major wear parts are serviced helps maintain proper clamping force.
Replacing the Paddle but Not the Hardware
It's common to replace worn paddles while reinstalling hardware that has already seen years of vibration and impact.
Installing new paddles with new hardware helps ensure the entire assembly begins its service life together.
Ignoring Worn or Elongated Mounting Holes
Sometimes the hardware isn't actually the problem.
If the beater bar, tube, or flighting has become elongated, bent, or worn where the paddle mounts, simply installing new bolts may not eliminate movement. Repairing or replacing the damaged mounting surface may be necessary before installing new hardware.
Always inspect all mating components before reassembly and make the necessary repairs or replacements.
Overtightening or Undertightening
Proper clamping force depends on proper installation.
Hardware that is insufficiently tightened may allow movement.
Excessively tightening hardware can also create unnecessary stresses.
Following the manufacturer's installation recommendations is always the preferred approach.

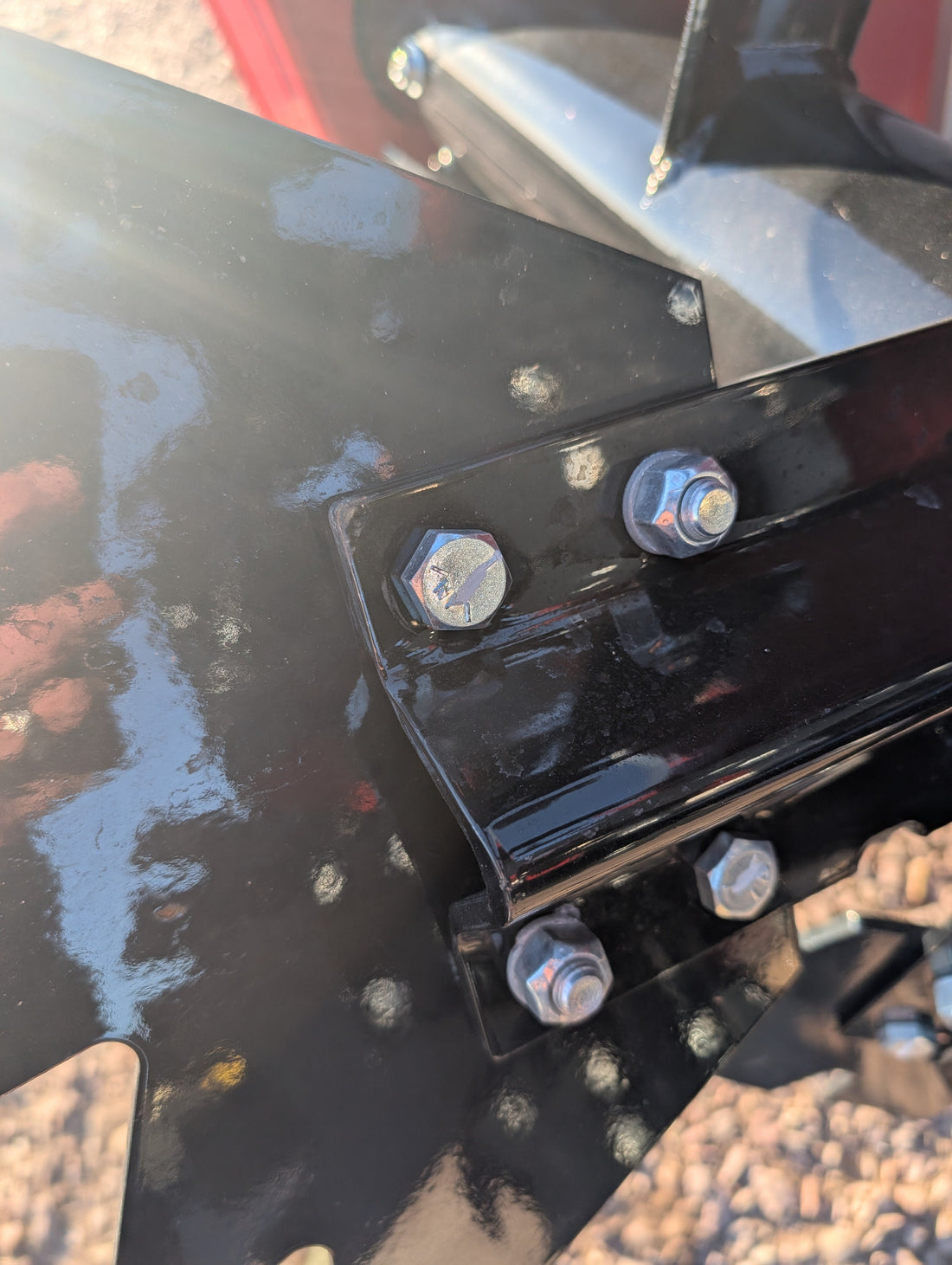

Bolt Orientation and Nut Placement Matters Too
When installing replacement manure spreader paddles, many operators focus on tightening the hardware correctly but overlook another small detail: bolt orientation.
On many manure spreaders, it's generally preferable to install the bolts so the bolt head faces the material being spread, with the lock nut positioned on the opposite side of the mounting bracket.
Why?
The solid head of the bolt is generally better able to withstand incidental abrasion and impact than the corners of a lock nut. If the hardware is exposed to rubbing against manure, bedding, or other abrasive material, placing the bolt head on the wear side may help reduce wear on the locking nut and make future removal easier.
It can also help protect the locking feature of the nut from unnecessary exposure to debris.
However, always follow the manufacturer's installation instructions if a specific bolt orientation is specified, as some manure spreader designs require the hardware to be installed a certain way for clearance or serviceability.
When no specific orientation is required, keeping the bolt heads on the wear side and the lock nuts on the protected side is often considered good installation practice.
Frequently Asked Questions
Can I use stronger bolts than the manufacturer originally installed?
Higher-strength hardware is not automatically better.
The best practice is generally to replace the hardware with fasteners that match the manufacturer's specifications for the application.
Should I replace the lock nuts every time?
Many operators choose to replace lock nuts whenever they replace manure spreader paddles or hammers since the locking feature may diminish after repeated installation and removal.
Why do my manure spreader bolts keep loosening?
Hardware that repeatedly loosens may indicate worn lock nuts, insufficient clamping force, damaged mounting surfaces, elongated bolt holes, or other wear within the assembly. Simply tightening the hardware again may not address the underlying cause.
As part of your regular pre-operation inspection, it's a good idea to visually check the beater assembly for any loose or missing hardware. Grab each paddle by hand and verify that it feels secure with no noticeable movement. If a paddle appears questionable, a light tap with a rubber mallet can sometimes help identify a loose mounting point before it becomes a larger problem.
Taking a few minutes to inspect the hardware before heading to the field may help catch loose paddles early and reduce the chance of more extensive damage or downtime during operation.
Should I replace the bolts when installing new paddles?
In many cases, yes.
Replacing the hardware at the same time helps ensure the new paddles are installed with hardware in comparable condition, reducing the chance of future maintenance caused by worn fasteners or weakened lock nuts.
Before installing the new paddles, take a few extra minutes to inspect the entire beater assembly. Remove any packed manure, rust, or foreign material from the mounting surfaces so the paddle seats flat against the beater. Also inspect the beater bars, tubes, and flighting for bends, cracks, or other damage that could affect paddle alignment or clamping force.
The image above shows an example of a bent/warped mounting surface that should be repaired and straightened before installing new paddles. Bent or distorted mounting surfaces can prevent the paddle from seating properly, reduce clamping force, and contribute to premature hardware loosening or uneven wear.
Installing new paddles on worn, bent, or damaged mounting surfaces may shorten the service life of both the paddle and the hardware. Taking the time to prepare the beater assembly before installation helps ensure the repair starts on a solid foundation and provides the best opportunity for long-term performance.
Can I mix old and new manure spreader hardware?
While it may be tempting to reuse some existing hardware, replacing the bolts, lock nuts, and paddles as a complete set helps ensure the assembly has consistent clamping force and comparable wear. Mixing heavily worn hardware with new components may reduce the overall reliability of the repair.
Related Articles
If you're replacing manure spreader wear parts, these guides may also help:
- 10 Signs Your Manure Spreader Hammers, Paddles & Beater Tips Need Replacement
- AR400 vs. A36 Steel for Manure Spreader Paddles – Which Material Lasts Longer?
-
New Idea Manure Spreader Paddle Mounting Guide – Adding a Second Hole for Replacement Paddles
Choosing the Right Hardware Matters
The paddle or hammer may do the work, but the mounting hardware keeps everything together.
Using hardware that matches the original specifications, replacing worn lock nuts, inspecting mounting surfaces, and maintaining proper clamping force all contribute to a reliable repair.
While bolts are relatively inexpensive compared to many other manure spreader components, they perform one of the most important jobs on the machine.
Giving them the same attention as the paddles themselves can help improve reliability and reduce unexpected downtime during the spreading season.
