How Do Manure Spreader Hammers, Paddles & Beater Teeth Work?
Understanding How Beaters Break Up and Distribute Manure
A manure spreader hammer or paddle may look like a simple piece of steel bolted to a rotating beater, but it plays an important role in how material is broken apart and distributed from the machine.
Depending on the manufacturer and spreader design, these wear components may be called hammers, paddles, beater teeth, beater tips, blades, or flails. Although those terms are sometimes used interchangeably, the parts do not necessarily perform exactly the same job.
A horizontal beater paddle, vertical beater tooth, spinner tooth, and swinging flail may all contact manure, but their shape, mounting position, and movement are designed around different spreading systems.
Understanding how these components work helps explain why paddle condition, geometry, mounting, and material selection can affect manure spreader performance.
How Does a Manure Spreader Work?
Before a hammer or paddle can spread anything, the manure first has to reach the discharge system.
Depending on the machine, material may be moved toward the rear using an apron chain, conveyor slats, hydraulic push system, augers, or another manufacturer-specific unloading system.
Once the material reaches the discharge area, the beater system takes over.
As the beater rotates, the paddles, hammers, or teeth repeatedly engage the incoming manure. During that process they help break apart packed material, accelerate it with the rotating assembly, and direct it away from the spreader.
A single paddle can therefore perform several jobs during each rotation.
It first enters the manure and begins separating packed material and bedding. As the beater continues rotating, the paddle transfers energy into the material and helps carry or throw it away from the machine.
The final result depends on far more than whether the paddle is simply present. Its size, shape, angle, position, beater speed, and the amount of material being fed into the beater all influence how the system performs.
Horizontal, Vertical, and Spinner Beater Systems
Not every manure spreader uses its paddles in the same way.
Horizontal Beaters
Horizontal-beater spreaders use a rotating beater positioned across the width of the machine.
As manure reaches the rear, the paddles or teeth break apart the incoming material and discharge it primarily behind the spreader.
These systems generally produce a narrower spreading pattern than vertical-beater or spinner-style machines.
The paddles still perform several functions at once. They tear apart clumps, work through bedding, accelerate material, and help move it through the discharge area.

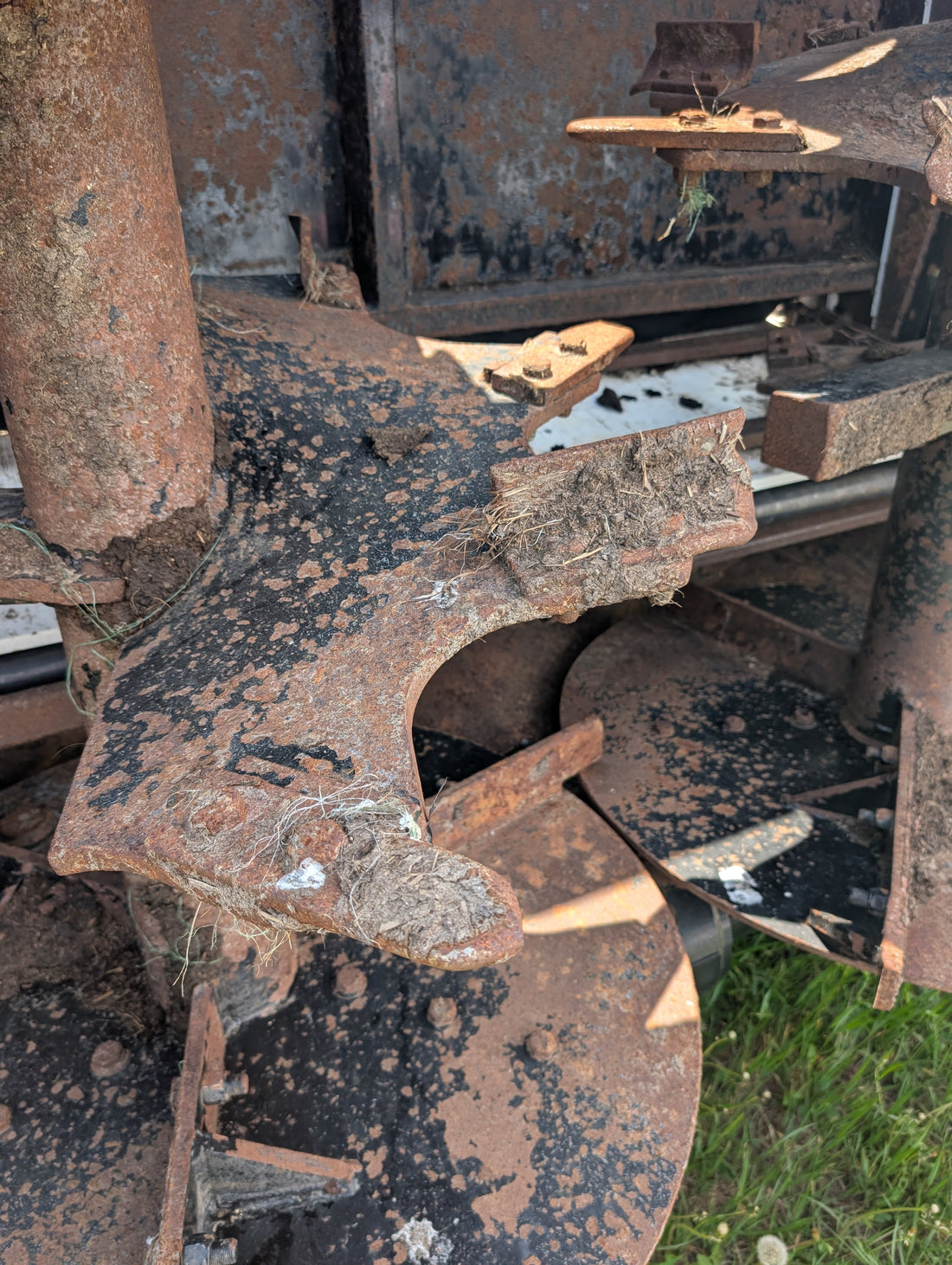

Vertical Beaters
Vertical-beater spreaders use tall rotating assemblies fitted with teeth or paddles.
Because of the orientation of the beaters, the system can throw material both rearward and farther to the sides, resulting in a wider spread pattern.
On these machines, paddle or tooth geometry becomes especially important because the component is helping both process the material and influence where it leaves the spreader.
Spinner and Other Discharge Systems
Some spreaders use beaters to break material apart before feeding it toward rotating spinners. Others use specialized teeth as part of the final discharge system itself.
The basic principle remains the same: material is fed into a rotating mechanism where wear components help break it apart, accelerate it, and direct it into the desired spread pattern. A conveyor or floor system typically controls how quickly material reaches the spreading mechanism.
That is why a replacement paddle should not be selected simply because it looks similar to another one.
The correct part needs to match the beater system it was designed for.
Why Paddle Shape and Position Matter
Manure spreader paddles are not simply interchangeable pieces of flat steel.
Differences in:
- Width
- Length
- Thickness
- Working angle
- Leading-edge shape
- Bend or offset
- Hole spacing
- Mounting position
Can change how a paddle interacts with the material.
The working surface affects how much manure the paddle engages. Its angle influences how the material is redirected. Its position around the beater affects when and where that interaction occurs during rotation.
This principle has been part of manure spreader design for a long time. Early spreaders used chains to move manure into rear beaters, but much of the material was initially deposited directly behind the wagon. Later designs incorporated angled paddles to throw material farther outward and create a broader spreading pattern.
Modern machines are considerably more advanced, but the underlying principle is still useful:
The geometry and orientation of the working surface influence how material leaves the beater.
That is also why a paddle that physically bolts onto a machine is not automatically the correct replacement.
Rigid Paddles vs. Swinging Hammers and Flails
Another important difference is how the wear component is mounted.
Many manure spreader paddles and teeth are rigidly mounted. Bolts clamp the paddle firmly against a support, bracket, flighting, or beater structure.
In these applications, there should not be unwanted movement between the paddle and its mounting surface.
Other spreaders use pivoting hammers or flails that are intentionally allowed to move around their mounting point.
That movement is part of the design.
However, intentional movement should not be confused with worn hardware, elongated mounting holes, or damaged mounting components.
Why Paddle Wear Changes Performance
A manure spreader paddle does not need to break off before it becomes worn out.
Over time, the working surface may:
- Become thinner
- Become shorter
- Round over
- Bend
- Crack
- Develop elongated mounting holes
- Lose its original shape
As material disappears from the working surface, the paddle no longer interacts with the load exactly as it did when new.
It may engage less material, break clumps apart differently, or discharge material differently from neighboring paddles.
That is why checking only whether every paddle is still attached is not enough.
For a complete wear inspection, see our 10 Signs Your Manure Spreader Hammers, Paddles & Beater Tips Need Replacement guide.
Why Some Paddles Wear Faster Than Others
Operating conditions can vary dramatically from one farm to another.
A spreader handling relatively clean manure and straw may experience very different wear than a machine regularly handling manure mixed with:
- Sand bedding
- Soil
- Gravel
- Mineral contamination
- Dirt
- Grit
Those abrasive particles repeatedly move across the paddle surface and gradually remove steel. The material used to manufacture the paddle therefore matters along with the shape of the part.
Some manufacturers use forged, hardened, heat-treated, cast, or abrasion-resistant components depending on the application. For example, some manufacturers identify different forged hammers, horizontal paddles, vertical beater teeth, and heat-treated teeth for different manure spreader systems.
There is no single universal material or manufacturing method for every manure spreader wear component.
We cover material selection in more detail in AR400 vs. A36 Steel for Manure Spreader Paddles – Which Material Lasts Longer?
Why Manure Spreader Paddle Hardware Matters
On a rigidly mounted paddle, the bolts, washers and lock nuts are just as important as the paddle itself.
The hardware creates the clamping force that holds the paddle securely against its mounting surface. When that joint remains tight, the paddle and support behave much more like one assembly.
When the hardware loosens, the paddle can begin moving against the mounting surface. That movement may contribute to:
- Elongated holes
- Worn bolt shanks
- Damaged mounting surfaces
- Loose lock nuts
- Increased vibration
- Progressive hardware failure
This is why installing a stronger paddle does not correct a damaged or loose mounting system.
We cover this subject in detail in Why Bolt Grade Matters on Manure Spreader Hammers & Paddles.
Bolt orientation can matter as well. When the equipment design allows, positioning the solid bolt head toward the wear side may help protect the lock nut from unnecessary abrasion and impact. Manufacturer-specific installation instructions should always take priority.
Foreign Objects and Sudden Impact
Manure spreaders occasionally encounter material that was never intended to enter the machine.
Rocks, scrap metal, wood, chains, concrete, or frozen chunks can create a much more severe impact than normal manure or bedding. A substantial strike may damage more than the paddle itself.
Possible damage includes:
- Bent or cracked paddles
- Broken hardware
- Distorted mounting supports
- Elongated bolt holes
- Damaged beater components
After a significant foreign-object strike, inspect the mounting area and surrounding beater structure rather than simply replacing the visibly damaged paddle.
What Happens When a Paddle Is Missing?
A missing paddle creates more than an empty mounting location.
That section of the beater is no longer processing material as intended, and the rotating assembly no longer has exactly the same mass distribution it previously had.
Depending on the machine and beater design, this may contribute to uneven material breakup, changes in spread pattern, or additional vibration.
If a paddle breaks off, inspect:
- The mounting support
- Adjacent paddles
- Bolt holes
- Hardware
- Nearby beater structure
The cause of the failure should be understood before simply bolting another paddle into place.
How to Inspect Manure Spreader Hammers and Paddles
Before performing any inspection, shut the equipment down and follow the manufacturer's maintenance and PTO safety procedures.
Once the machine is safely secured, inspect the beater for:
- Missing paddles
- Cracks
- Bent components
- Heavy edge wear
- Significant thickness loss
- Loose or missing hardware
- Elongated mounting holes
- Bent mounting surfaces
- Wrapped foreign material
- Noticeable differences between neighboring paddles
Also inspect the mounting surface before installing new parts.
Packed material, bent flighting, worn supports, or distorted mounting areas can prevent a new paddle from seating correctly. A new paddle cannot correct a damaged beater assembly.
Frequently Asked Questions
What is the difference between a manure spreader hammer and paddle?
Terminology varies between manufacturers. Some paddles are rigidly mounted, while some hammers or flails are designed to pivot. Their shape and function may also differ depending on whether the machine uses horizontal beaters, vertical beaters, spinners, or another discharge design.
Do manure spreader paddles cut manure?
They can help tear and separate packed manure and fibrous bedding, but their job is broader than simply cutting. They also help accelerate and redirect material as it moves through the spreading system.
Does paddle shape affect the spread pattern?
Yes. Paddle geometry, mounting angle, position, and the overall beater design can influence how material is engaged and where it travels after leaving the spreader.
Why are some manure spreader paddles angled?
An angled working surface can redirect material outward rather than simply carrying it straight rearward. Paddle angle has long been used as one way to influence manure distribution.
Can worn paddles cause uneven spreading?
They can contribute to it. Worn, bent, missing, or incorrectly installed paddles can change how the beater handles material. Spread uniformity can also be affected by machine settings, operating speed, feed rate, manure consistency, driving pattern, and spreader design.
Should I replace only one broken paddle?
That depends on the condition of the remaining components and the manufacturer's recommendations. At minimum, inspect the surrounding paddles, hardware, mounting surfaces, and beater before replacing the failed part.
We will cover this subject separately in Should You Replace One Manure Spreader Hammer or the Whole Set?
Understanding the Complete Beater System
A manure spreader hammer or paddle is simple in appearance, but it is part of a carefully designed material-handling system.
The floor or conveyor feeds manure toward the discharge area. The beater rotates. The paddles or teeth engage the load, break apart packed material, accelerate it, and help direct it away from the machine.
The shape and condition of those wear components, the integrity of their mounting surfaces, and the hardware holding them in place all affect how the beater performs.
Understanding how the entire system works makes it easier to recognize worn paddles, loose hardware, damaged mounting points, and changes in spreading performance before a small problem becomes a larger repair.
