Should You Replace One Manure Spreader Hammer or the Whole Set?

Should You Replace One Manure Spreader Hammer or the Whole Set?

How Paddle Wear, Beater Balance & Component Condition Affect the Decision

You find one badly worn manure spreader paddle.

Now what?

Do you replace that single paddle, replace several paddles in the same area, or install an entirely new set? There isn't one answer that applies to every manure spreader.

Some manure spreaders are specifically designed with individually replaceable paddles. Other machines have manufacturer recommendations requiring multiple paddles to be replaced together to help maintain proper beater balance. The condition of the remaining paddles also matters.

Before ordering an entire set—or replacing only the obviously damaged component—take a few minutes to determine why that paddle needs replacement and what condition the rest of the beater is actually in.

Yes, Sometimes You Can Replace Just One Manure Spreader Paddle

A single-paddle replacement can make sense when the machine is designed for individual paddle replacement and the damage is truly isolated.

For example, a relatively new paddle may become bent after encountering a rock or another foreign object while the remaining paddles have very little wear. In that situation, replacing an entire set of otherwise serviceable paddles may not necessarily make sense.

Individual replacement isn't unusual. Some manure spreader manufacturers specifically use bolt-on paddles designed to be replaced separately. Wallenstein, for example, identifies individually replaceable bolt-on paddles on its MX130 and provides a procedure for replacing the required paddle.

But the fact that a paddle can be individually replaced doesn't automatically mean that is always the correct repair.

You still need to inspect the rest of the assembly.

First Determine Why That One Paddle Failed

If one paddle looks dramatically worse than everything around it, ask why.

Was it:

  • Gradually worn?
  • Bent?
  • Cracked?
  • Broken?
  • Missing?
  • Loose?
  • Damaged around the mounting holes?
  • Hit by a foreign object?

One isolated bent paddle surrounded by components in good condition tells a different story than one extremely worn paddle in a beater where every neighboring component is also approaching the end of its service life.

If impact damage is suspected, inspect the mounting hardware, paddle support, beater structure, and neighboring components as well.

Don't simply bolt on a new paddle and assume the repair is complete.

Beater Balance Is an Important Consideration

Manure spreader beaters are rotating assemblies.

That makes balance important. The paddles, hammers, or teeth are distributed around the beater, and some manufacturers specifically address maintaining balance when replacing wear components.

For example, some manufactures specify on certain manure spreader designs that all three paddles from a row should be replaced together to maintain proper beater balance. On a different beater design, the manufacturer specifies replacing all four lower paddles when those lower components are being replaced.

That is an important lesson:

Don't assume the replacement procedure for one manure spreader applies to another manure spreader.

If your operator's or service manual specifies replacing paddles in matched groups, rows, opposing positions, or complete sets, follow that procedure.

Why Can Mixing a New Paddle With Severely Worn Paddles Matter?

Imagine a beater where most of the paddles have experienced years of substantial material loss.

Now install one brand-new paddle with its complete original dimensions and profile.

The new component may be considerably different from the worn components surrounding it.

How important that difference is depends on the design of the machine, location of the paddle, operating speed, and manufacturer's requirements. We don't recommend inventing a universal allowable weight or dimensional difference.

Instead, look at the bigger picture.

If one damaged paddle is being replaced in a relatively uniform, lightly worn assembly, individual replacement may be reasonable when permitted by the manufacturer.

If nearly every paddle is heavily worn and one brand-new component would be dramatically different from everything around it, it may be time to consider replacing a larger group rather than continuing one paddle at a time.

Don't Automatically Replace the Whole Set Either

The opposite mistake is assuming that finding one damaged paddle means every paddle must immediately be discarded. That can create unnecessary expense.

Suppose a spreader recently received new paddles and one component was damaged by an isolated impact. If the other components remain in excellent condition and the manufacturer permits individual replacement, replacing all of them may provide little benefit.

The decision should be based on:

  • Manufacturer replacement instructions
  • Reason for the failure
  • Wear on neighboring paddles
  • Overall beater wear
  • Location of the damaged component
  • Mounting condition
  • Difference between the new and existing components

Replace what the condition and design of the machine actually require.

Sometimes Replacing a Row or Group Makes More Sense

The choice isn't always between one paddle and every paddle on the machine.

There can be a middle ground. Some spreader designs arrange wear components in rows, matched positions, or groups. Manufacturer procedures may call for those components to be replaced together.

This is where checking the parts or operator's manual for your specific manure spreader becomes particularly important.

Depending on the machine, the correct repair might be:

  • One individual paddle
  • Opposing paddles
  • One complete row
  • A group of lower paddles
  • All paddles on one beater
  • A complete set

There is no reason to guess when the manufacturer has already established a replacement procedure for that machine.

Compare the Existing Paddles With the New Replacement

Before deciding how many paddles to replace, put a new component beside several of the existing ones.

Compare:

  • Overall length
  • Width
  • Thickness
  • Working edge
  • Original profile
  • Mounting holes
  • Bend or formed shape

This can quickly show how much material the existing paddles have actually lost.

A paddle that still looks "pretty good" by itself may look dramatically different when placed beside a new replacement. Conversely, if the existing paddles remain very close to the new component and only one was damaged, that supports a very different repair decision.

This is one reason keeping an unused replacement paddle on the shelf can be useful even before you need it. Besides having a replacement ready during the season, it gives you a physical reference for what the original paddle profile looked like.

Compare Similar Locations on the Beater

As we've discussed elsewhere in this series, not every paddle necessarily wears at the same rate.

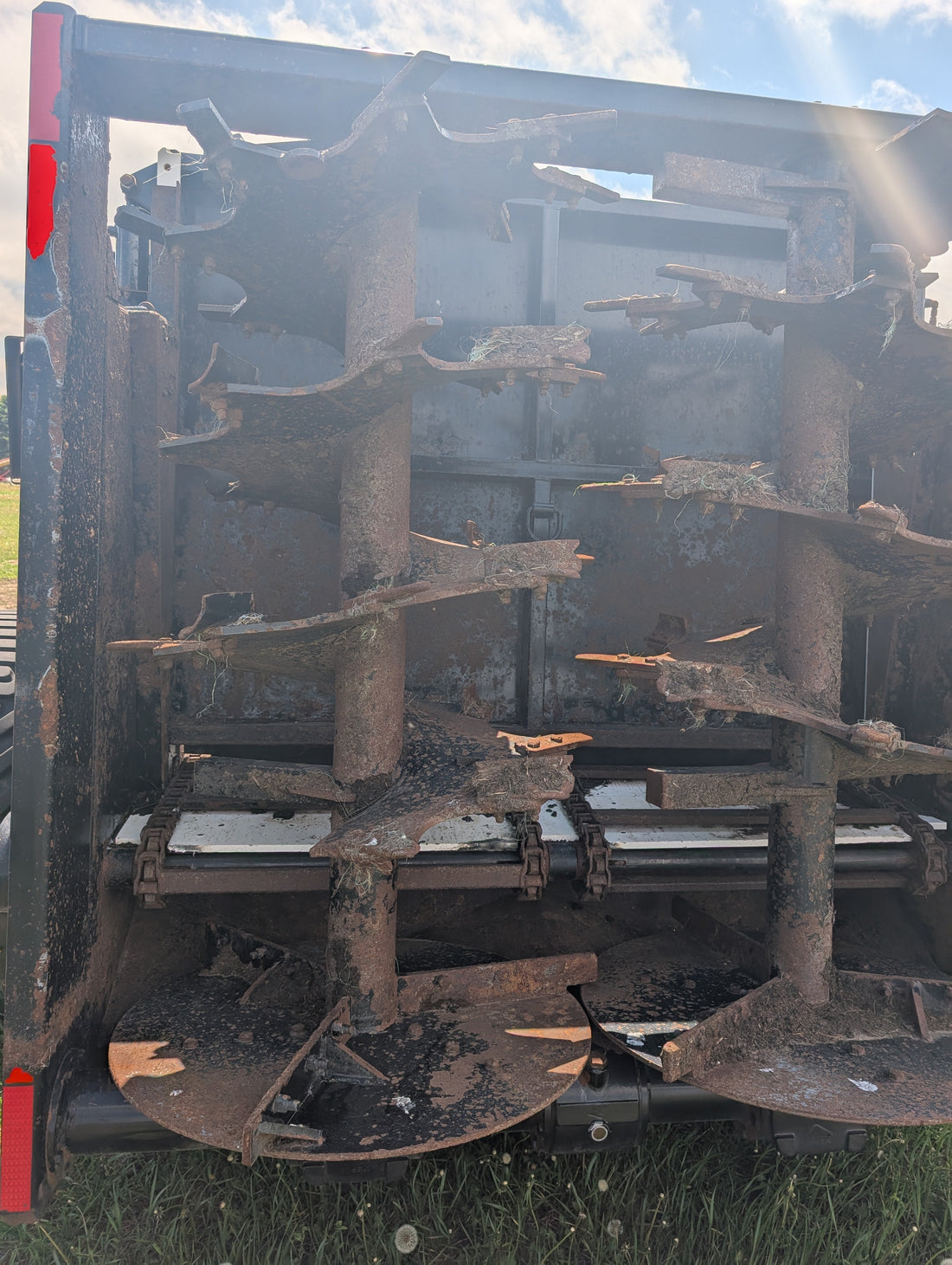

This can be particularly noticeable on vertical-beater manure spreaders.

Over the years, we have seen many machines where paddles near the bottom of the vertical beaters experience substantially more wear while upper paddles remain surprisingly close to new.

The lower portion of the beater can remain more heavily engaged with the load, so comparing a heavily used lower paddle directly with a lightly used upper paddle may not tell the whole story. Instead, compare components operating in similar locations.

For example:

Lower paddle vs. neighboring lower paddle

rather than simply:

Lower paddle vs. top paddle

This helps distinguish a normal wear pattern from one unusually damaged component.

What If All the Lower Paddles Are Worn but the Upper Paddles Look Good?

This is exactly where a blanket "replace the entire set" rule can become wasteful.

If the lower portion of a vertical beater has experienced substantially more wear than the upper portion, the machine may not necessarily need every wear component replaced at the same time.

However, don't automatically replace only the lower paddles either. Check the manufacturer's procedure first.

Some machines may require specific components or groups to be replaced together for balance or proper operation.

If no specific replacement grouping is provided, evaluate the condition of the components, their arrangement on the rotating assembly, and whether replacing only the worn area would create a substantial difference within a matched group.

Different Manufacturers Use Different Replacement Strategies

Manure spreader wear-component designs vary substantially.

KUHN Knight, for example, uses several different systems across its manure spreader lineup, including forged hammers, horizontal beater paddles, vertical beater teeth, and bolt-on spinner-discharge teeth. KUHN also offers hammer kits containing multiple hammers for certain Slinger applications.

Other manure spreaders may use individually replaceable paddles, grouped hammer assemblies, reversible wear components, welded paddles, or completely different mounting systems.

Equipment from manufacturers such as KUHN Knight, New Idea, New Holland, John Deere, H&S, Meyers, Pik Rite, Hagedorn, Artex, JBS, Roda, Degelman, Wallenstein, and others should therefore be evaluated according to the design of the specific machine.

Manufacturer name alone isn't enough either. Two manure spreaders from the same manufacturer may use completely different beater systems.

Identify the model and beater configuration before deciding how many wear components should be replaced.

Some Paddles Aren't Individually Replaceable

Another reason to identify the exact beater design is that not every paddle is removable.

For example, Wallenstein states that paddles on several of its smaller MX-series spreaders are welded to the beater and are not individually replaceable, while the standard MX130 uses bolt-on paddles that can be individually replaced.

That's a good example of why general advice can only go so far.

Even within one manufacturer's manure spreader lineup, the repair method can change according to model and beater design.

Inspect the Hardware While You're There

If a paddle has reached the point where it needs replacement, inspect the hardware securing it.

Look at the:

  • Bolt heads
  • Bolt shanks
  • Threads
  • Lock nuts
  • Washers where used
  • Mounting holes
  • Contact surfaces

Manure spreader hardware operates in the same abrasive and corrosive environment as the wear components.

The bolt head may also be exposed to direct material contact depending on how the paddle is mounted.

If the hardware is worn, damaged, heavily corroded, has questionable threads, or the locking feature of the nut is no longer dependable, installing a new paddle with worn-out hardware doesn't make much sense.

Some manufacturer procedures specifically call for new hardware during paddle replacement. For example, some manufactures procedure for certain lower paddles specifies installing new hardware when those paddles are replaced.

For more information, see Why Bolt Grade Matters on Manure Spreader Hammers & Paddles.

Install the Hardware in the Correct Orientation

When the design allows it, pay attention to which side of the assembly receives the bolt head and which side receives the nut.

In applications where one side is directly exposed to manure and abrasive material, it is generally preferable for the bolt head to receive that direct wear rather than exposing the nut and threaded end unnecessarily, provided that arrangement matches the original design and manufacturer instructions.

A worn bolt head can generally still leave the threaded portion protected.

Severe wear or damage to the nut and exposed threads can make future disassembly considerably more difficult.

Before copying another machine or photograph, verify the proper orientation for your particular paddle and beater assembly.

Clean the Mounting Surface Before Installing Anything

Removing the old paddle gives you an opportunity that shouldn't be wasted.

Clean the mounting area.

Remove:

  • Packed manure
  • Rust scale
  • Dirt
  • Baler twine
  • Net wrap
  • Wire
  • Other foreign material

The new paddle needs to seat against a sound mounting surface.

Inspect the bracket, beater bar, tube, or support for bending, cracking, excessive wear, or elongated holes.

A new paddle installed against a damaged mounting surface doesn't correct the underlying problem.

Check for Elongated Mounting Holes

A loose paddle can move against its hardware. Over time, that movement can begin changing a round mounting hole into an elongated or oval-shaped hole.

If you remove a worn paddle and discover damaged holes, don't simply tighten a new component over the problem.

Determine whether the wear is in:

  • The paddle
  • The mounting bracket
  • The beater
  • The bolt
  • Or multiple components

Replacing a new wear component doesn't repair a worn beater structure underneath it. The mounting system needs to be capable of securely clamping the replacement component.

If You're Replacing Several Paddles, Look for a Pattern

A group replacement is also a good opportunity to understand how your spreader has been wearing. Lay the removed components out in approximately the same order they occupied on the machine.

You may notice:

  • More wear toward the bottom
  • Similar wear across an entire row
  • One unusually damaged component
  • More wear on one side
  • Different wear between neighboring paddles
  • Repeated mounting-hole damage

That pattern can provide information you wouldn't see if every old paddle immediately went into the scrap bin.

Take a picture before throwing them away.

Those worn components are effectively a record of what has been happening inside the machine.

Keep One Old Paddle for Comparison

Here's another simple maintenance trick.

When replacing a complete group or set, consider keeping one representative worn paddle.

Mark it with:

  • Machine
  • Beater location
  • Date
  • Approximate season or hours if known

For example:

H&S 310 – Lower Beater – Fall 2026

Now you have both a physical example of what you considered replacement-level wear and, ideally, photographs of the measurements from before replacement.

When you inspect the new set in future seasons, you have another reference point.

You don't need a museum full of manure spreader paddles—one representative example can be enough.

When Replacing the Whole Set Starts Making Sense

Replacing a larger group or complete set becomes more reasonable when:

  • Most components show substantial wear
  • Several paddles are approaching the same replacement condition
  • Manufacturer instructions specify group replacement
  • Existing paddles are dramatically different from new components
  • Multiple mounting areas require repair
  • The machine is already down for substantial beater maintenance
  • You want to establish a uniform new wear baseline

That last point can be particularly useful.

If a complete group is replaced at the same time, you know those components entered service together.

Take your baseline measurement photos when they're new.

A season later, you can compare wear among components that started with essentially the same service history.

When Replacing One Paddle Makes More Sense

Individual replacement may make sense when:

  • The manufacturer permits individual replacement
  • Damage is isolated
  • Neighboring paddles remain in good condition
  • Existing components remain reasonably close to the new profile
  • The mounting structure is sound
  • The replacement doesn't conflict with manufacturer balance requirements

An impact-damaged paddle on an otherwise recently serviced beater is a good example.

There's little value in throwing away serviceable components merely because one encountered a rock.

Don't Mix Different Paddle Designs Without Knowing Why

Replacement components should match the intended application. Two paddles that fit the same bolt holes aren't necessarily functionally identical.

Differences can include:

  • Thickness
  • Length
  • Width
  • Weight
  • Bend angle
  • Material
  • Working-edge geometry
  • Hole position
  • Direction or orientation

Those differences can affect how the component interacts with material and potentially how the rotating assembly behaves.

Verify the replacement by manufacturer, model, part number, dimensions, and beater location rather than assuming anything that physically bolts on is interchangeable.

Frequently Asked Questions

Can I replace just one manure spreader paddle?

Sometimes, yes.

Some manure spreaders use individually replaceable paddles. If the manufacturer permits individual replacement, the damage is isolated, and the remaining components are in good condition, replacing one paddle may be appropriate.

Other machines require specific groups of paddles to be replaced together to maintain proper beater balance. Always check the procedure for the specific machine.

Do manure spreader paddles need to be replaced in pairs?

Not universally.

Depending on the beater design, a manufacturer may allow individual replacement or specify replacing a row, group, opposing components, or another defined set.

Don't create a universal "replace in pairs" rule unless the manufacturer specifies it.

Can one new manure spreader paddle cause an imbalance?

The effect of replacing one component depends on the beater design and the condition of the remaining components.

Some manufacturers specifically require grouped replacement to maintain proper beater balance, while other machines are designed for individual paddle replacement. Follow the manufacturer procedure for your spreader rather than assuming either approach applies universally.

Should I replace all my paddles if only the bottom ones are worn?

Not automatically.

Lower paddles on vertical-beater spreaders may experience considerably more material contact and can wear faster than upper components.

Inspect the entire assembly and check whether the manufacturer requires a particular replacement grouping. If the upper components remain serviceable and the design allows sectional or individual replacement, a complete set may not always be necessary.

Should I replace the bolts when replacing manure spreader paddles?

Inspect the hardware whenever paddles are removed.

Worn bolt heads, damaged threads, worn shanks, questionable locking nuts, or heavily corroded hardware are good reasons to replace the fasteners. Some manufacturer procedures specifically require new hardware during certain paddle replacements.

Should all manure spreader paddles wear evenly?

Not necessarily.

Paddle location and material flow can create different wear rates across the beater. On vertical-beater machines in particular, lower components may experience substantially more wear than upper paddles.

Compare components operating in similar positions before deciding whether a difference is abnormal.

Should I replace manure spreader paddles before they break?

Replacement should generally be based on condition and manufacturer guidance rather than waiting for complete failure.

Substantial profile loss, cracking, severe bending, damaged mounting holes, insecure mounting, or other serious deterioration may justify replacement before a component actually separates from the machine.

One Paddle, One Row or the Whole Set?

There isn't a universal answer—and that's the important answer.

Don't automatically replace one paddle just because only one looks bad, and don't automatically replace an entire set just because one component needs attention.

Determine why the component failed. Compare it with neighboring paddles. Compare the existing components with a new replacement. Inspect the hardware and mounting structure. Look at the wear pattern across the complete beater.

Most importantly, check the replacement procedure for the specific manufacturer, model, and beater configuration.

Some manure spreaders are intentionally designed for individual paddle replacement. Others have specific grouped-replacement requirements to maintain proper beater balance. Manufacturer documentation demonstrates both approaches.

The best repair is the one that restores the worn or damaged components without ignoring the condition and design of the rest of the rotating assembly.

Related Manure Spreader Guides


Looking for Replacement Manure Spreader Hammers, Paddles or Hardware?

Northwest Iowa Parts manufactures and supplies aftermarket manure spreader wear parts for a variety of applications, including replacement hammers, paddles, beater teeth, and mounting hardware.

Our current replacement offerings include applications for manufacturers such as H&S, New Holland, Artex, JBS, Pik Rite, Meyers, Hagedorn, Roda, and others. For example, we currently offer H&S horizontal-beater paddles as well as left-hand, right-hand, and reversible replacement vertical-beater paddles for several Artex, JBS, Pik Rite, Meyers, Hagedorn, and Roda applications.

When replacing wear components, verify the application and inspect the complete mounting area before installation.

Browse our complete selection of replacement manure spreader hammers, paddles, beater tips, and bolt kits to find the right parts for your equipment.

Back to blog

Leave a comment

Please note, comments need to be approved before they are published.
